Description

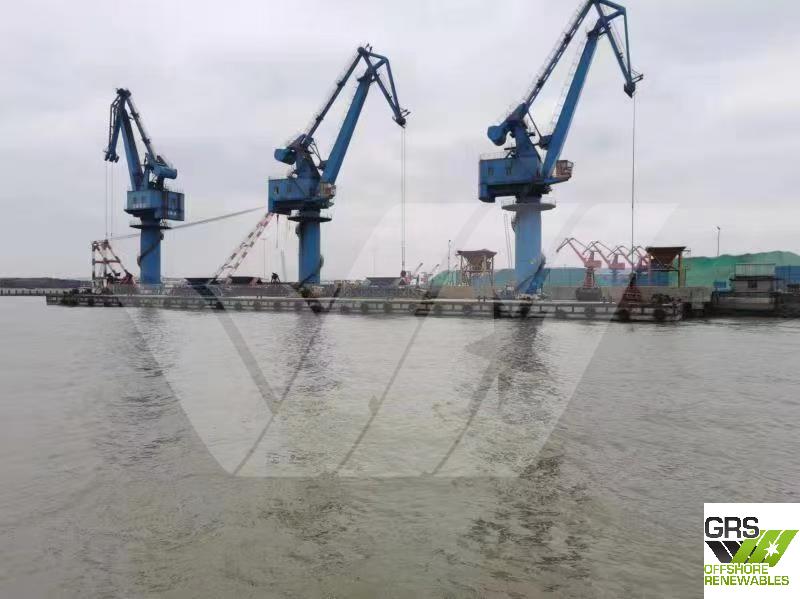

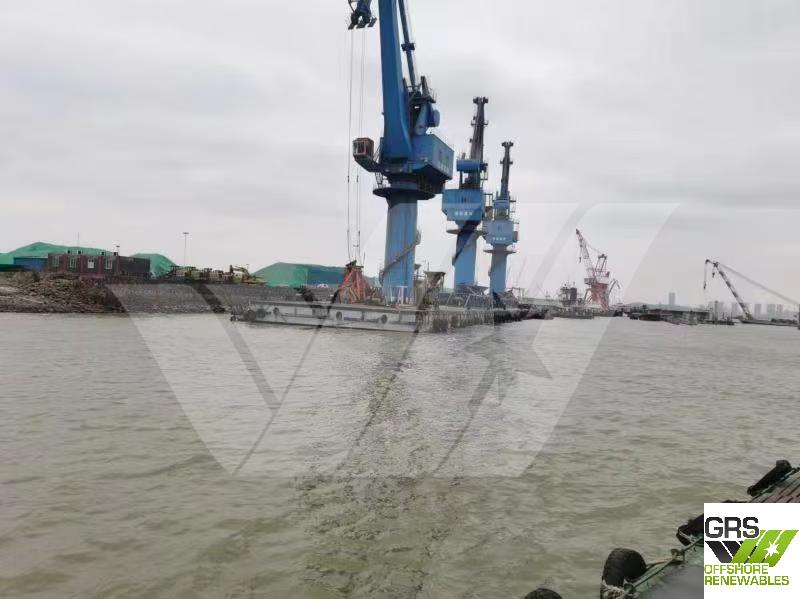

This transshipment crane barge is mainly used for terminal transshipment, Ship to Ship (STS) operations.

Core Parameters
Principal Dimensions: Length Overall (LOA) 138.40m, Maximum Breadth
20.20m, Moulded Depth 4.30m, Light Draft 1.50m, Loaded Draft 1.446m
Tonnage/Displacement: Gross Tonnage (GT) 3930 tons, Net Tonnage (NT) 1179 tons; Light Displacement 4054.962 tons, Loaded Displacement 3904.962 tons
Hull: Steel, mixed longitudinal and transverse framing, with 8 watertight transverse bulkheads
Anchoring Equipment: Outfit Number 1752, 6 anchors, 2 windlasses (Model: DJB-100, Manufacturer: Xinghua Yuanyang Machinery Co., Ltd.)

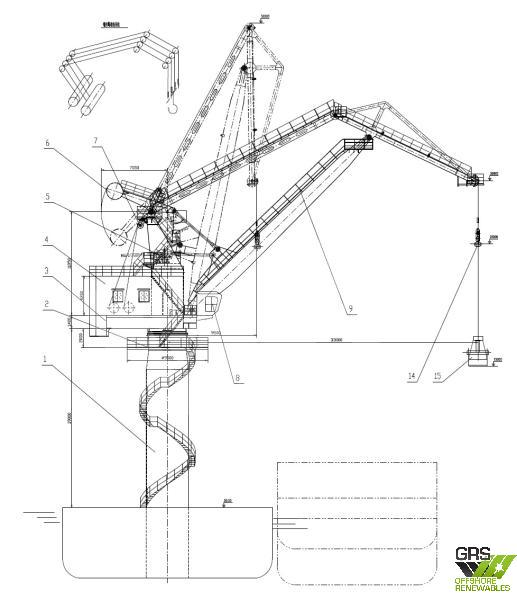

Cranes: 3 identical FQ5033 floating cranes, Working Class A8, Lifting Speed 35m/min, Slewing Speed 1.25r/min


Keel laid: August 6, 2013
Completion date: February 10, 2014
Manufacturer: China
Navigation Area: Class B, CCS
Length Overall (LOA): 138.40 m
Maximum Breadth: 20.20 m
Moulded Depth: 4.30 m
Light Draft: 1.50 m
Loaded Draft: 1.446 m
Tonnage / Displacement
Gross Tonnage (GT): 3930 tons
Net Tonnage (NT): 1179 tons
Light Displacement: 4054.962 tons
Loaded Displacement: 3904.962 tons
Hull Material: Steel
Framing: Mixed longitudinal and transverse
Watertight transverse bulkheads: 8
Number of anchors: 6
Number of windlasses: 2
Number of cranes: 3 nos
Working Class: A8
Lifting speed: 35 m/min
Slewing speed: 1.25 r/min
Rated Lifting Capacity 50 tons /30 tons for grab
Maximum Working Radius 25 m/33 m
LOA 138.4 m
Beam 20.2 m
Draft 1.45 m

Built in year 2014
Class : China Classification Society
Flag : China
Gross Tonnage of 3,930 and Nett Tonnage of 1,179

3 installed with a max lifting capacity of 50 tons
