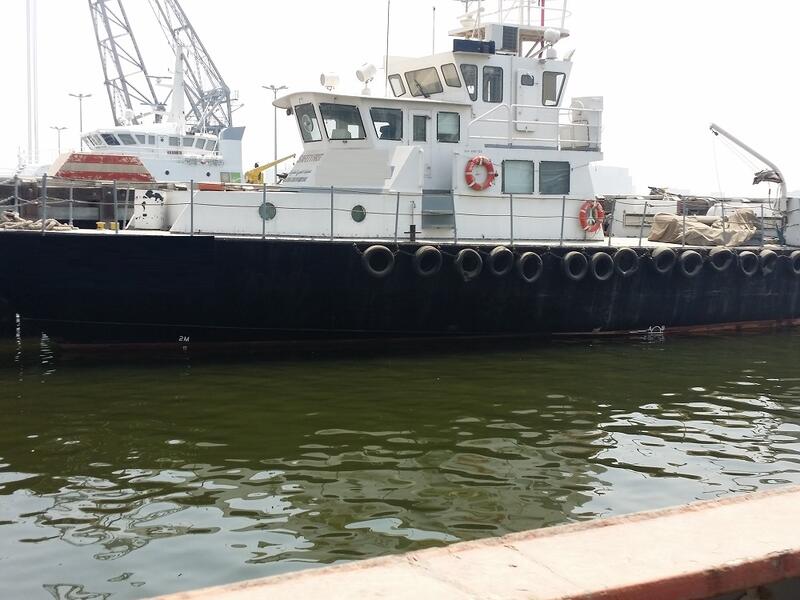

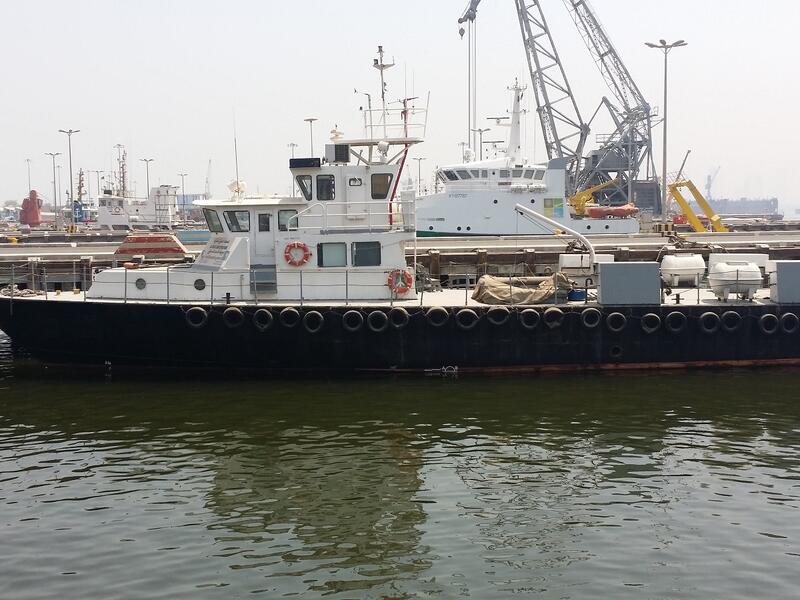

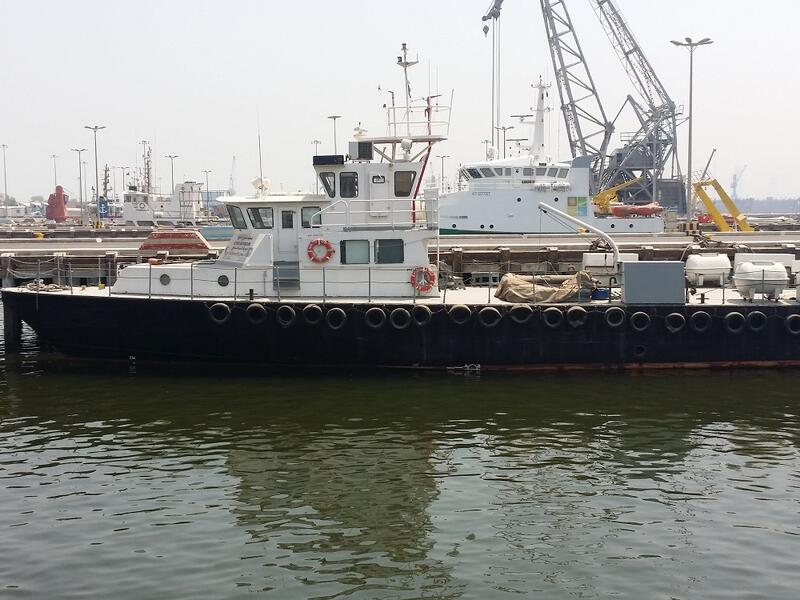

Description

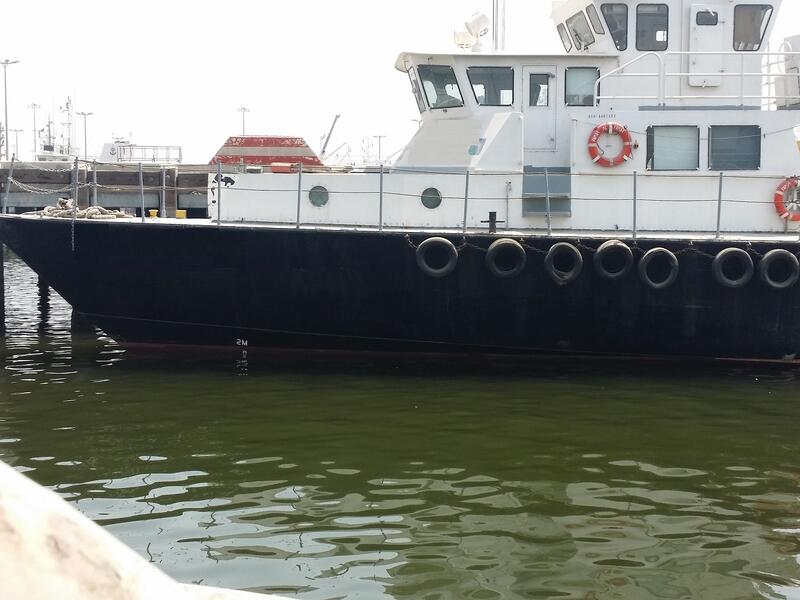

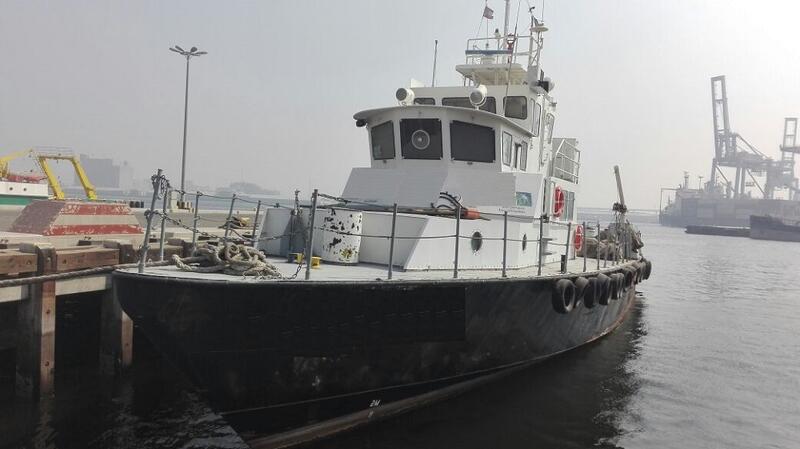

Built: October 1995, USA. Deck Load Capacity: 1 metric ton. Classification: ABS. Speed 20 - 21 knots. Main Engines: 2 Sets 16V92 TA-DDEC (Detroit Diesel); Total B.H.P 2200. Crew: 9, Security Personnel: 4, Total Berths: 13. Passenger Capacity: 6 (Seated), All cabins are fully air-conditioned.

Specifications

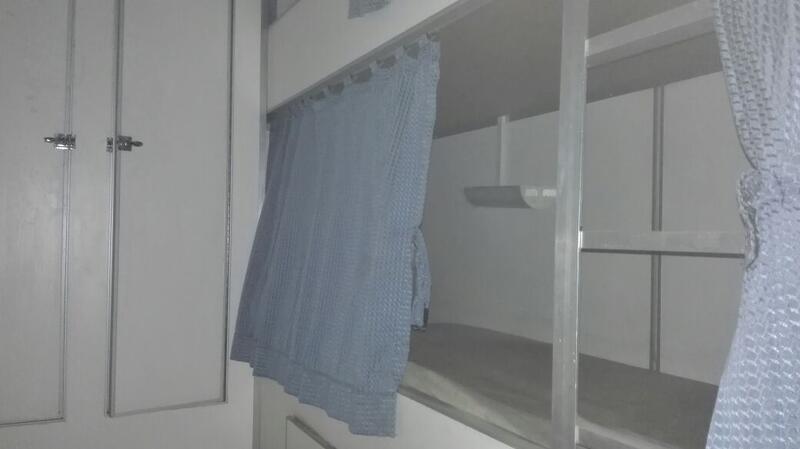

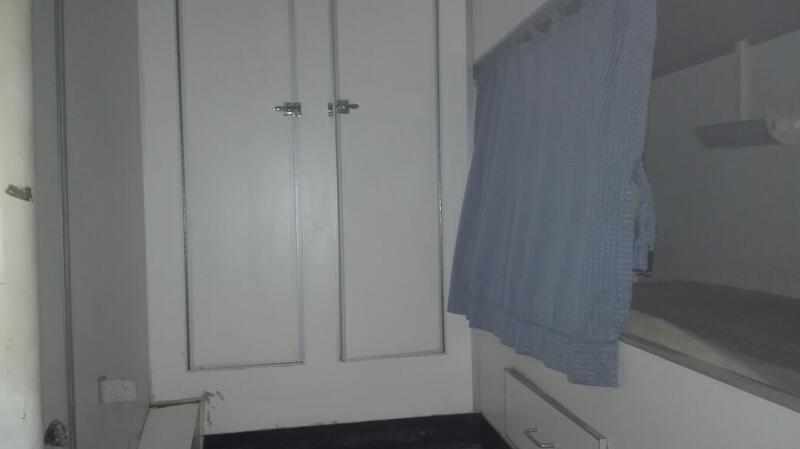

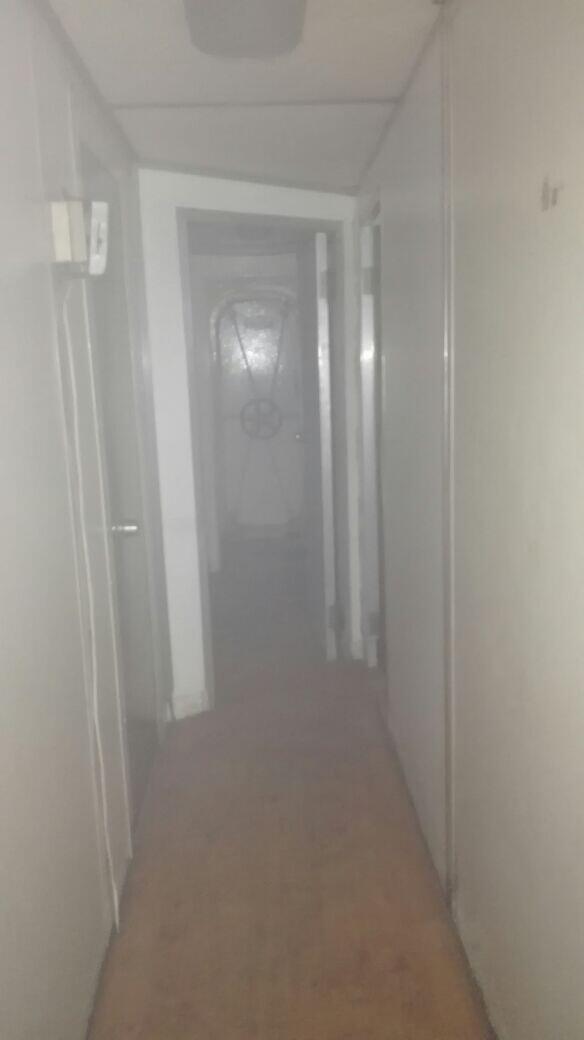

Accommodation

Crew: 9
Security Personnel: 4
Passenger Capacity: 6 (Seated)

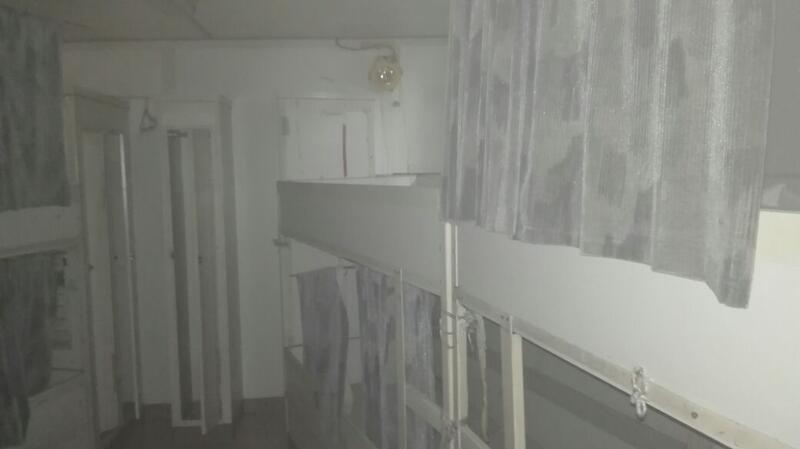

All Cabins are fully airconditioned

Construction

Flag: Kuwait
Depth Moulded: 3.51m
Gross Tonnage: 135 tons
Net Tonnage: 40 tons

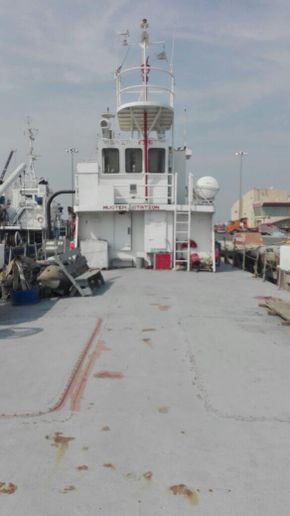

Deck Load Capacity: 1 metric ton

Cargo Capacities
Fuel Oil: 3900 USG
Fresh Water: 1500 USG
Ballast Water Tank: Nil
Cold Store: 1 Cub. Meter
Frozen Store: 1 Cub. Meter

Equipment

Pumps
Bilge / Fire / Ballast System: 3 Nos
Fuel Pump: 1 No

Deck Equipment
Anchor: 1x Danforth High Holding 110 pounds)
Anchor Capstan: 1x Electric Driven (220V)

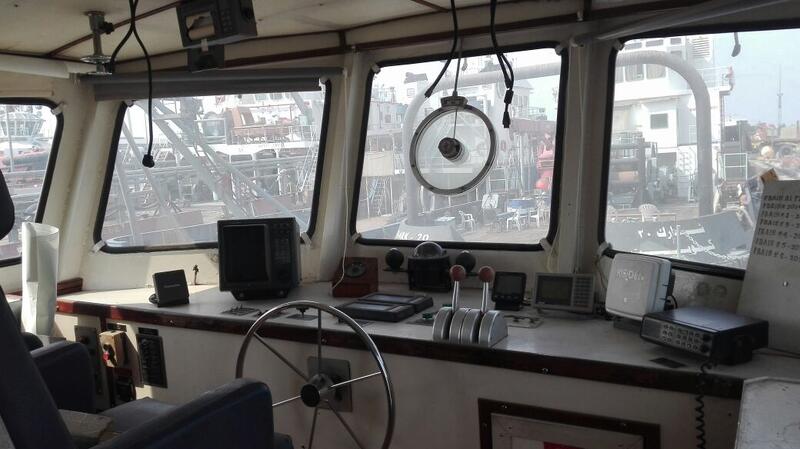

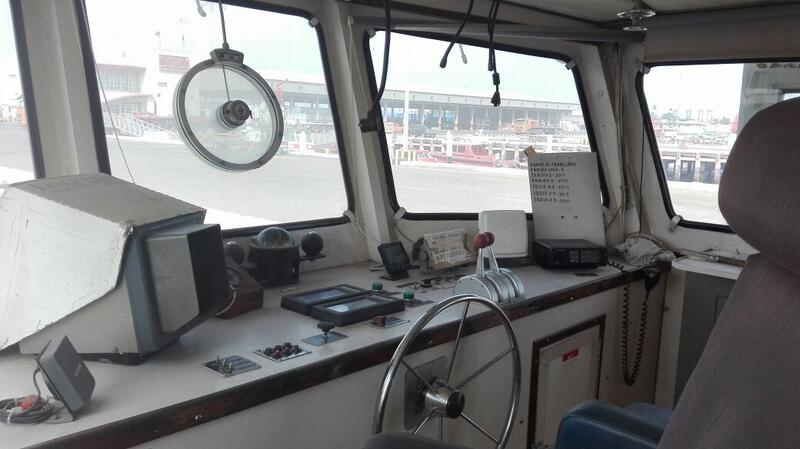

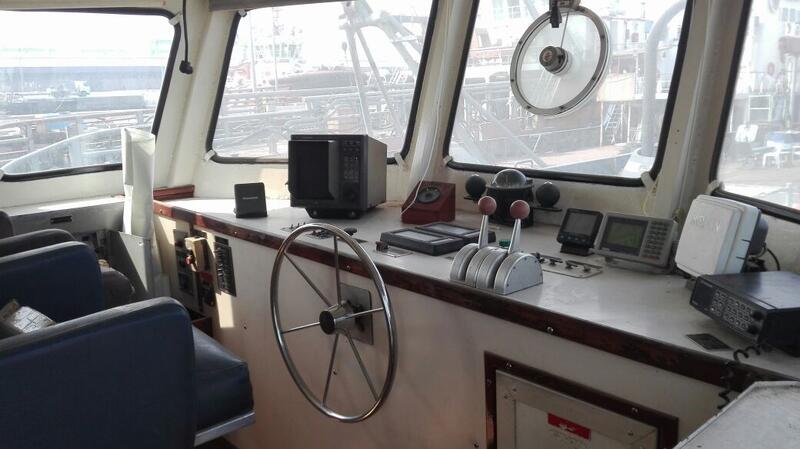

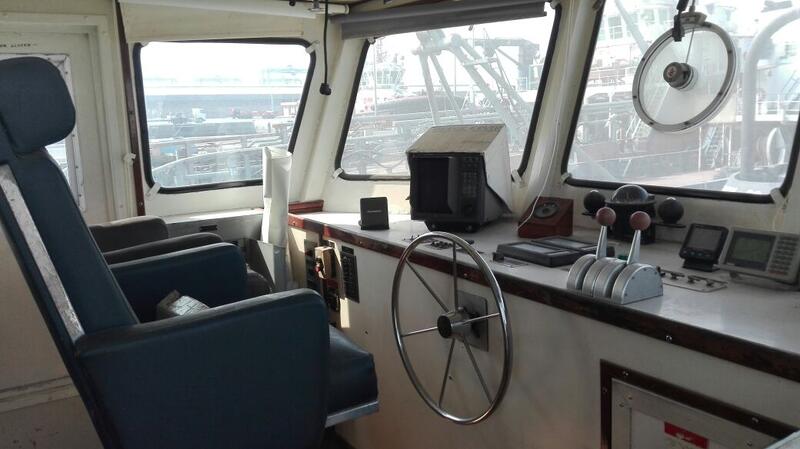

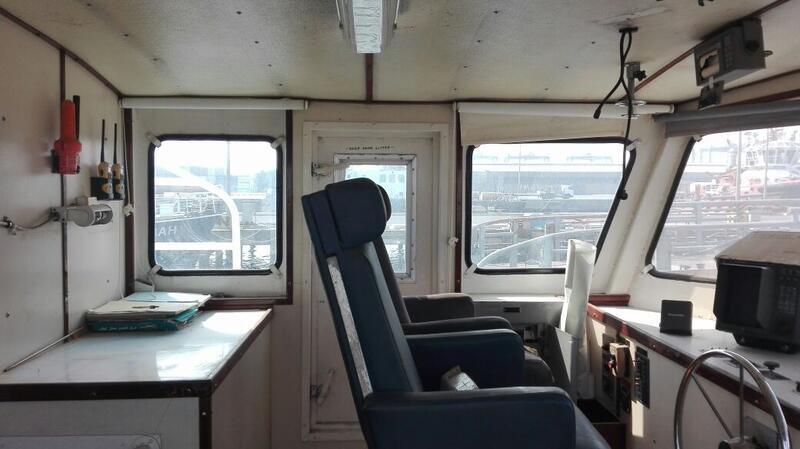

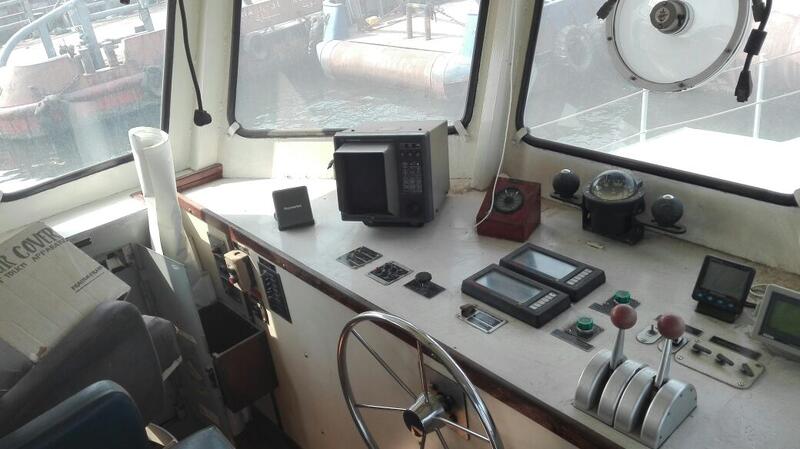

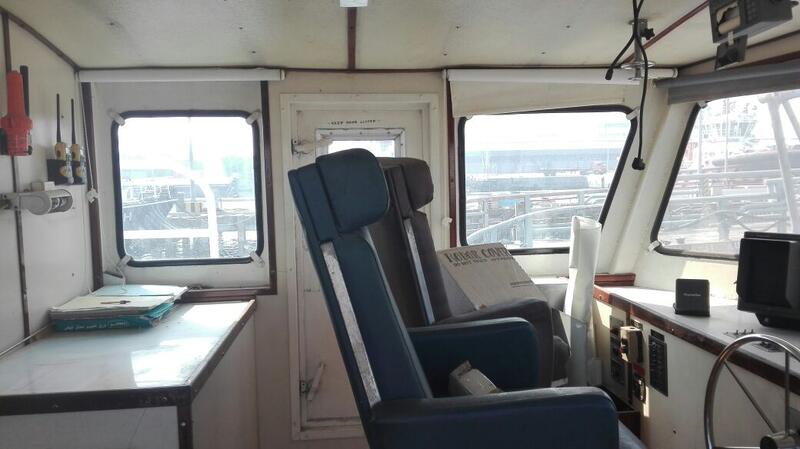

Navigation Equipment

Radio & Navigation Equipment
GMDSS: A1
VHF Radio: 1 set
Radar: 1 set
Echo Sounder: 1 set
Magnetic Compass: 1 set
DGPS: 1 set
Gyrocompass: Nil
EPIRB Class. / Solas
Clear View Screen: 2 sets

Search Light (forward): 1x set (1.0kw)
Search Light (afterward): 1x set (1.0kw)
Search Light Portable: 1 set (500kw)
Binocular Telescope: 1 set (25 x 150mm)
Cargo Light for Aft Deck: Yes
Public Address System: Yes
Auto Pilot: No
Motor Siren or Air Horn: Yes
Walkie-Talkie: Yes
Patrol Light: Yes
GPS System: 1x
Rudder Angle Indicator: 1x
Depth Recorder: 1x
Wind Indicator: 1x

Engine(s)

Performance
Minimum Speed (Full Loaded): 21 knots
Economical Speed: 20 knots
Type of Fuel: MOD

Fuel Consumption & Endurance
Maximum Speed at 100% MCR 90 USG/hr
Service Speed at CSR 80 USG/hr
In port with one Generator 2 USG/hr
Endurance / Service Speed at 975 miles

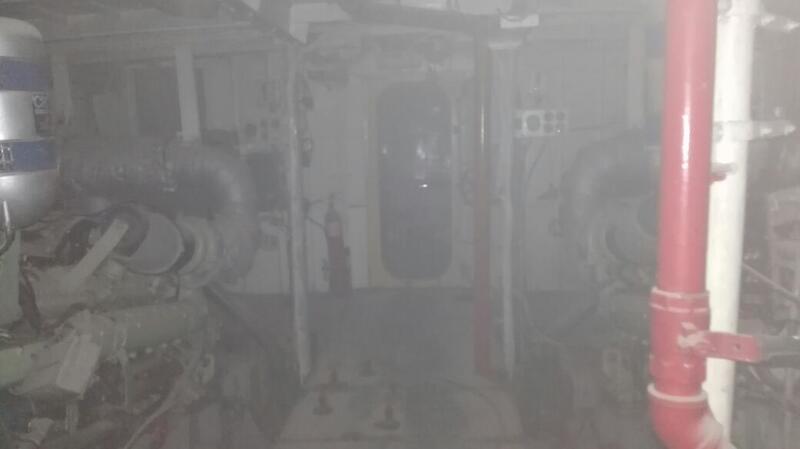

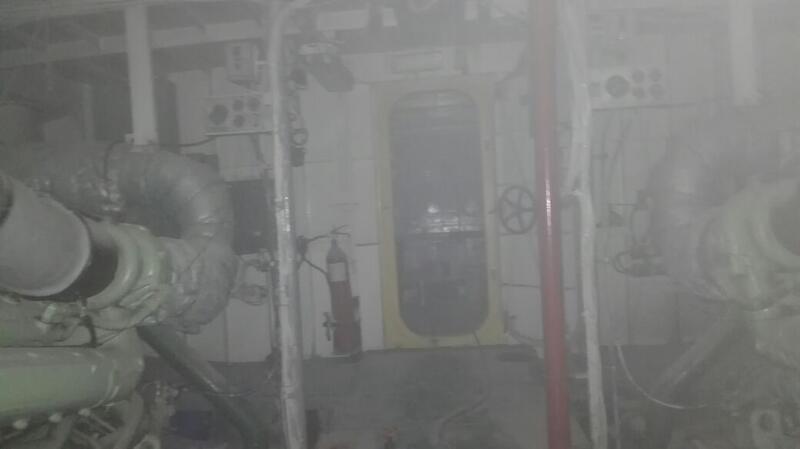

Propulsion System

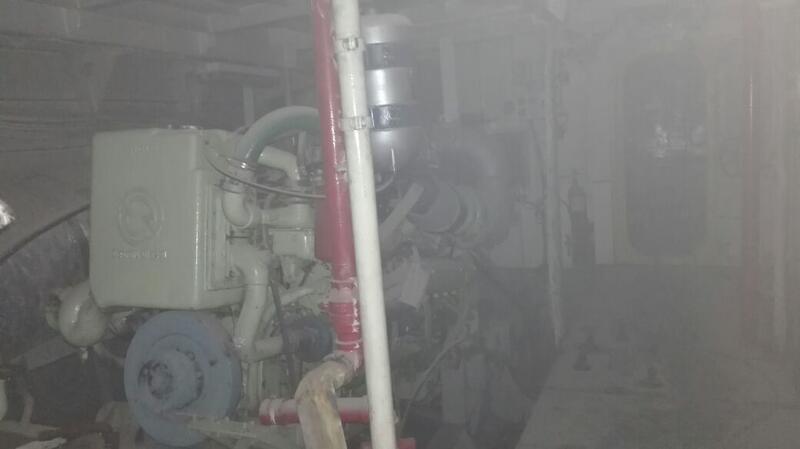

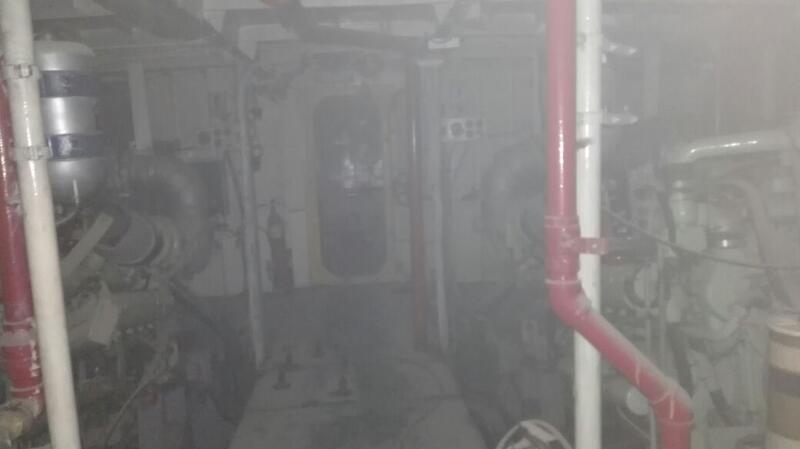

Main Engines: 2 Sets 16V92 TA-DDEC (Detroit Diesel), Total BHP 2200
Generators: 2 Sets Detroit Diesel, Perkins 4.236
Propellers: 2

Electronics

Video Camera (8mm or Digital): 1 set

Safety Equipment

Fire Fighting and Life Saving Equipment
Fire Monitor: 1 set
Fire Pump: 1x 60cu m/hr
Built in Co2 Ext System: Yes

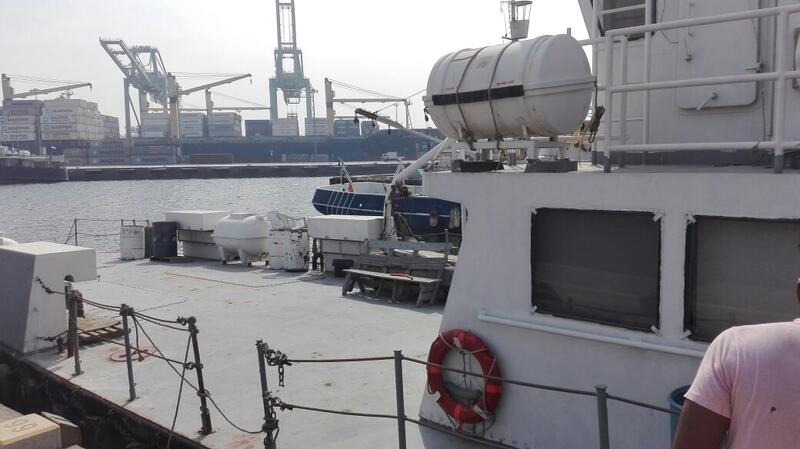

Life Raft: 2x 15 men capacity
Life Jackets: 18 pcs
Emergency Lighting System: Yes
One Inflatable Boat: 1x 4.72m

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
