Description

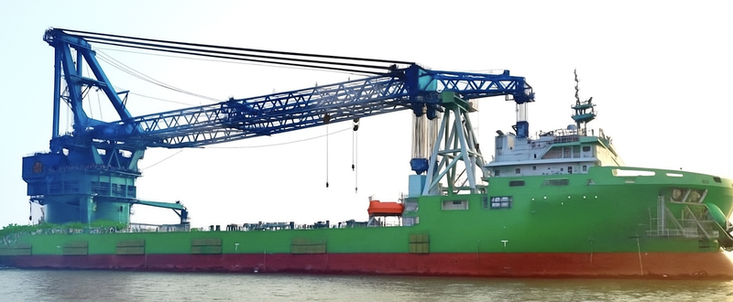

This OCV has a 4000T SWL full-revolving crane installed on-board and is built in 2024. She is designed for unlimited navigation and is fully self-propelled.

The vessel has an LOA of 176.90 m, a breadth of 43.80 m and a depth of 14.20 m. Draft is 9.00 m at load line and reaches 11.00 m in maximum operational condition. The vessel maintains a service speed of 8.0 kn and carries accommodation for 60 POB with endurance for 60 days. The cargo main deck area extends to 2,900 m² with a deck loading capacity of 12 t/m².

Propulsion is provided by a diesel-electric system driving 2 × azimuth propellers rated at 3,000 kW each and supported by 2 × tunnel thrusters of 3,000 kW each. Total installed power exceeds 8,000 kW, equal to more than 10,000 bhp. Electrical supply is delivered by 4 × main generator sets at 3,850 kW (6,600 V/50 Hz), a 600 kW harbor generator, and a 200 kW emergency generator.

The lifting arrangement is centered on a revolving crane rated at 4,000 t with twin main hooks of 2,800 t and auxiliary capacity of 900 t. Maximum lifting height is 113 m above deck and 5 m below deck, with lifting speeds ranging between 1.7 m/min under full load and up to 6.0 m/min under no load. Two rigging hooks and two cargo stabilizers of 30 t each are fitted. Additional 3 utility cranes include a 10 t crane at 20 m outreach, a 15 t crane at 25 m, and a 30 t crane at 25 m.

Ballast capacity totals 61,486 m³, with fuel oil capacity of 3,324.50 m³ and freshwater capacity of 1,566.80 m³. The vessel is fitted with an adjusting heeling system utilizing 10 × 1,200 m³/h pumps and is equipped with electric anchor windlasses with 95 mm chain and rated pulling force of 540 kN.
This combination of large-scale revolving crane capability, DP-1 class DPS, endurance, and heavy deck cargo capacity positions the unit as a modern offshore construction and installation vessel built to Tier III environmental standards.

Specifications

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A Buyer should instruct his agents, or his surveyors, to verify such details as per Buyer desires (project plans/scopes of work) are validated.

This vessel is offered subject to availability, price change, or withdrawal without notice.
