| GRS.OFFSHORE RENEWABLES | |
| Stadthausbruecke 7, Hamburg, Deutschland, 20355, Germany | |
| Contact: | S&P Broker |
| View All GRS.OFFSHORE RENEWABLES Listings | |
| US$30,000,000 | | |
| Status: | Available |
| Location: |
Hamburg Germany [View Map] |
| Reference: | #1072176 |

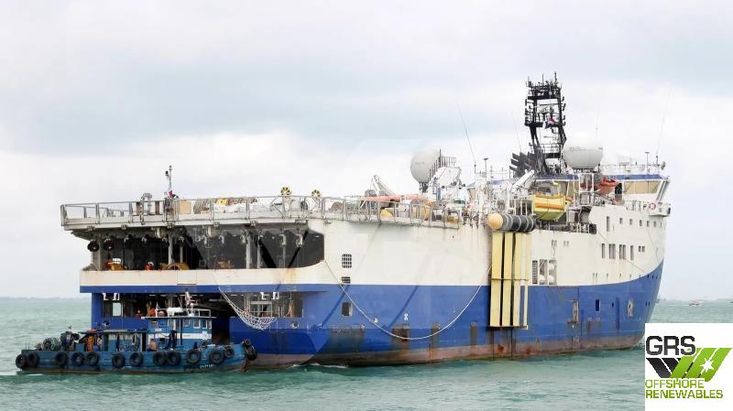

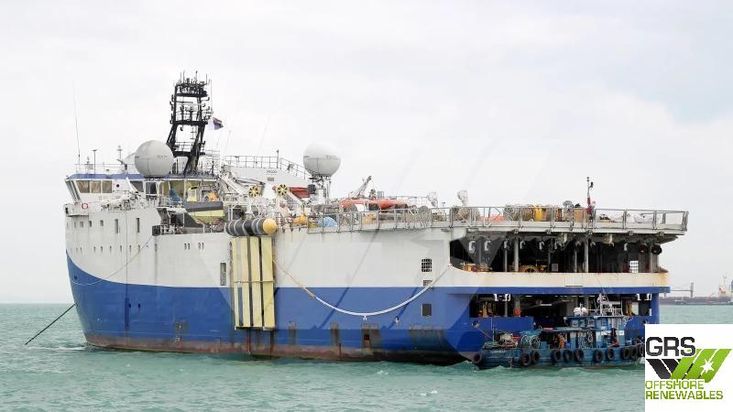

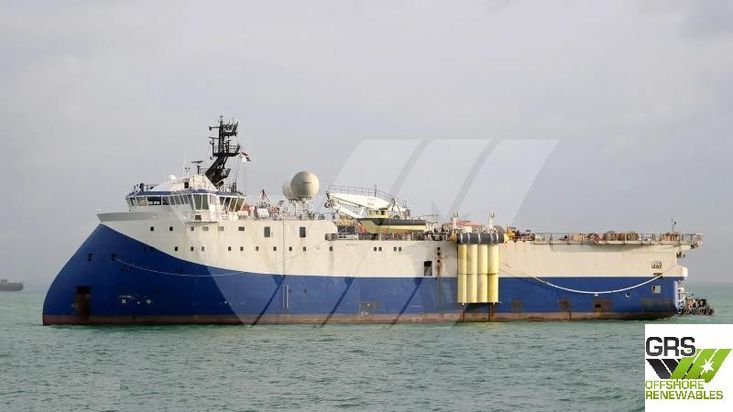

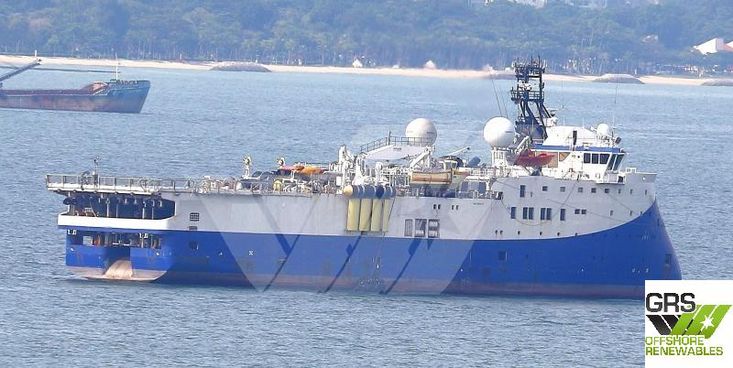

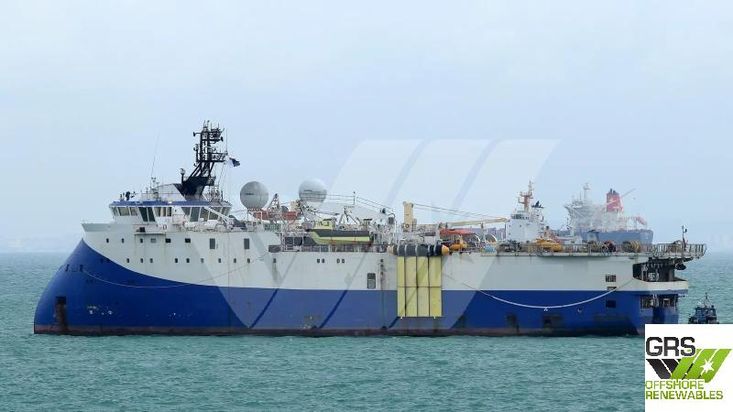

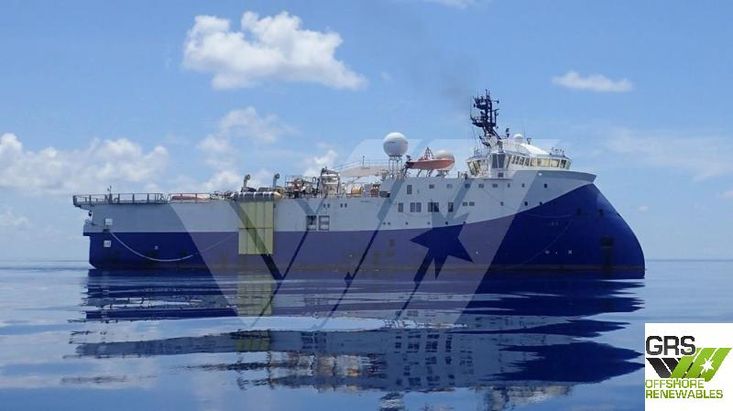

Description
LOA 92 m
Beam 21 m
Draft 7.51 m
Built in year 2010
Design is : Ulstein SX134
Class : DNV
Flag : Bahamas
Gross Tonnage of 7,894 and Nett Tonnage of 2,369
Deadweight : 4,450 metric tonnes
Bollard Pull : 135 tons
Dynamic Positioning of class : DP 2
Ice classed 1A
Total passenger capacity 111 with 111 berths
Speed : 15 knots
Engines : 6 x Wartsila / Wartsila Finland Oy 9L20, 12,900 kw, 1,000 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : Bowthruster + Sternthruster (1 Bow Tunnel thruster 1,200kw + 1 Bow Retract. dir. thruster 850kw + 1 Stern Tunnel thruster 830kw)
Specifications
| Builder: | DRYDOCKS WORLD - DUBAI LLC |
| Constructed: | 2010 |
| Guests: | 111 |
| Berths: | 111 |
| Cabins: | 69 |
| No. of engines: | 6 |
| Engine power: | 17300hp |
| Cruising Speed: | 15. knots |
| Length over all: | 92m |
| Beam: | 21m |
| Maximum draft: | 7.512m |
| Displacement: | 9250000 kg |
Engine(s)
6 x 12,900 kw, 1,000 rpm, Wartsila / Wartsila Finland Oy 9L20,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Certification
REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified
MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
Disclaimer
GRS performs its services exclusively on the basis of its General Terms and Conditions, which are available at the GRS website www.grs-offshore.com.
All details are given in good faith but without guarantee. Subject to availability.
Location Map
Note: Indicated location is approximate general area only.
