Description

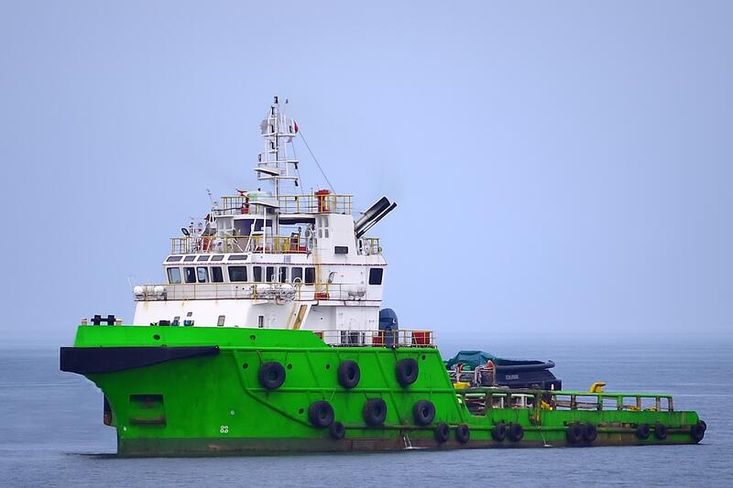

Built in 2007, this 4,750 BHP Ice Class Anchor Handling Tug Supply vessel is classed with BV. The vessel has 55 T BP capabilities and a GRT of 977 and NRT of 293, with a DWT of 834 t. Her principal dimensions are 48.0 m LOA, 13.2 m breadth, and 4.5 m draft.

She is powered by 2 × CAT 3516B main engines, each developing 2,357 BHP at 1,600 rpm, driving twin fixed pitch propellers in kort nozzles through Reintjes gearboxes, delivering a bollard pull of 55 t and a free-running speed of approx. 10 kn. Electrical power is supplied by 3 × CAT 3408C gensets rated at 340 kW each.

Deck machinery includes a double-drum electro-hydraulic towing winch with 100 t pull (1st layer) and 150 t brake holding capacity, 2 × 10 t tugger winches, 2 × 5 t capstans, and a stern roller of 4.0 m × 1.8 m dia., SWL 200 t. The vessel is equipped with hydraulic shark jaws and towing pins, SWL 200 t.

Clear deck area measures 221.45 m² (21.5 m × 10.3 m) with deck cargo capacity of 250 t. Tank capacities include 638 m³ fuel oil, 196 m³ fresh water, 92 m³ ballast, 13.7 m³ foam, and 19.3 m³ dispersant. Fuel consumption is approx. 11.5 m³/day under tow and 9.5 m³/day without tow.

Accommodation is provided for 30 persons in 1-man and 4-man cabins. Navigation and communication equipment includes JRC and Furuno radars, GPS, gyro and magnetic compasses, autopilot, SSB, VHF, Inmarsat C, EPIRB, and Doppler speed log.

Fire-fighting capability comprises a FiFi system rated at 600 m³/hr with two monitors, supported by fixed water spray and foam/dispersant systems.

Specifications

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A Buyer should instruct his agents, or his surveyors, to verify such details as per Buyer desires (project plans/scopes of work) are validated.

This vessel is offered subject to availability, price change, or withdrawal without notice.
