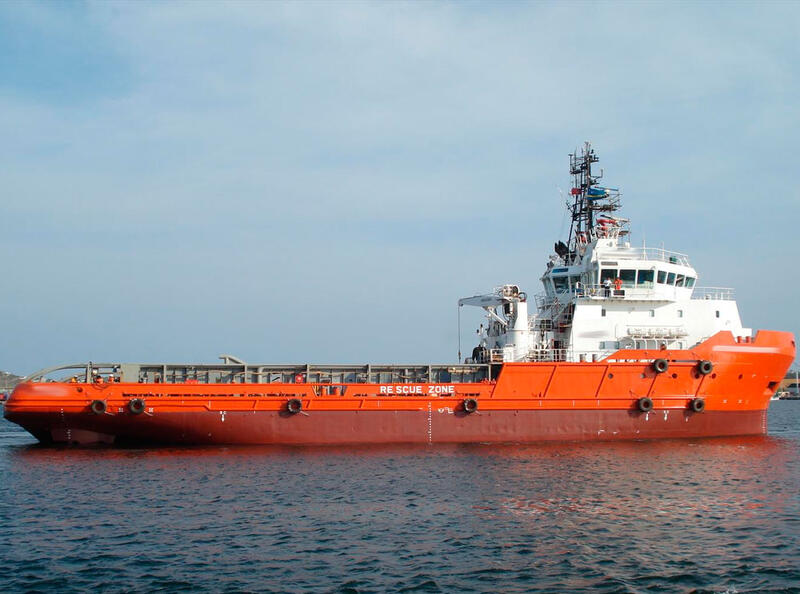

DO0299 Offshore - AHTS For Sale
- FROM DIRECT OWNERS -

Put in Class laid up condition by Owners in June 2022 with no major mechanical issues.
A sister under same condition is being sold at the moment.

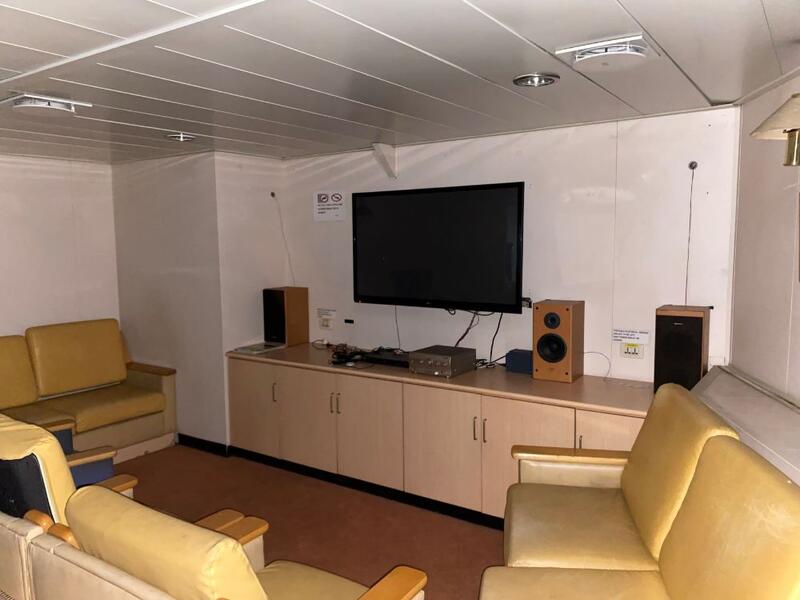

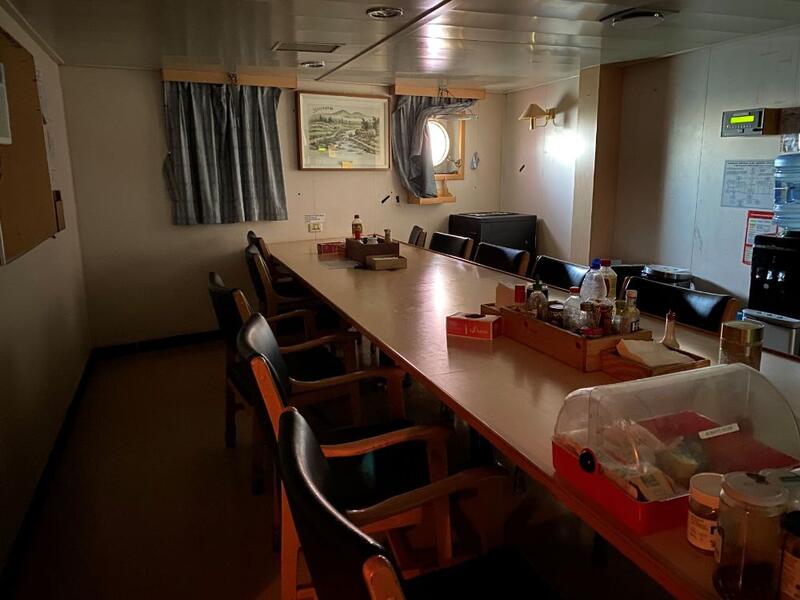

1. Large accommodation.
2. Ideal for towing & supporting jack-up rigs.
3. Good station keeping during operations.
4. Ideal for ROV operations.

Tank Capacities
NLS See brine/mud
Brine / Mud 140 m³ Brine (Multi usage tanks) 562 m³ Mud (Multi usage tanks, dedicated 422 m³)
Drill / Ballast Water 565 m³
Dry Bulk 187 m³ (In 4 dedicated tanks)
Fuel Dedicated 496 m³ (Dedicated)
Tank Capacities Details Refer to Tank Capacities Table
Drilling Brine See brine/mud
Ballast Water 565 m³
Drill Water 565 m³

Specifications

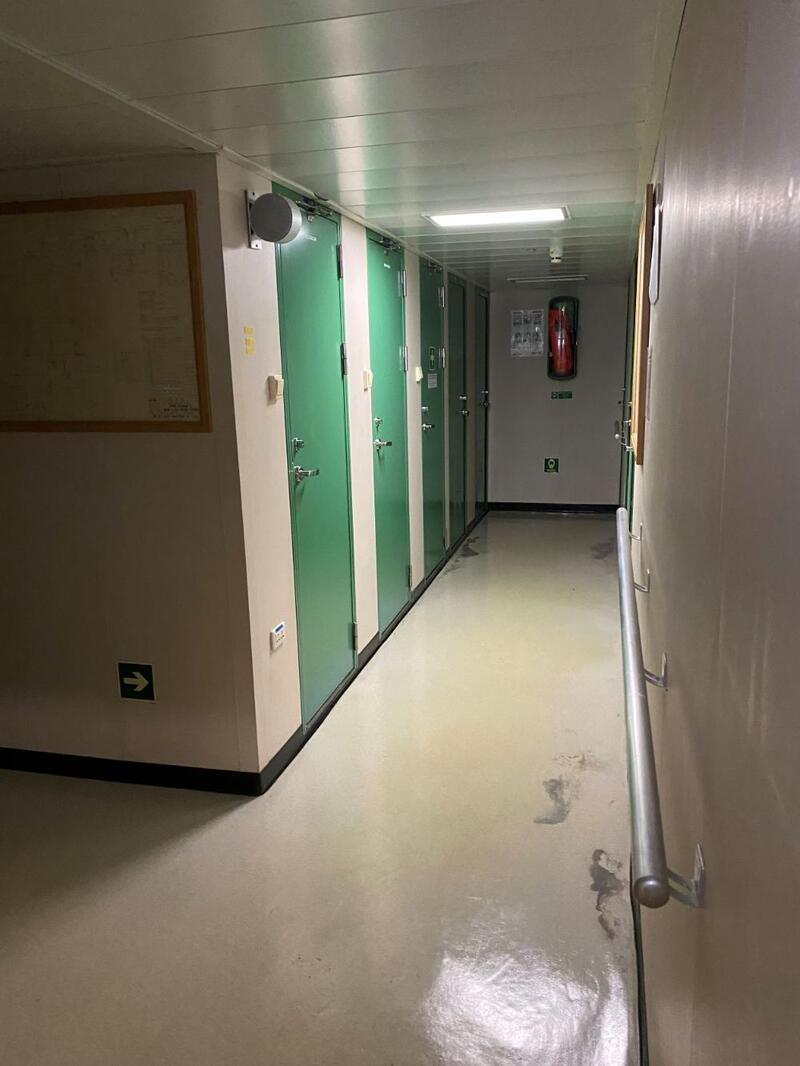

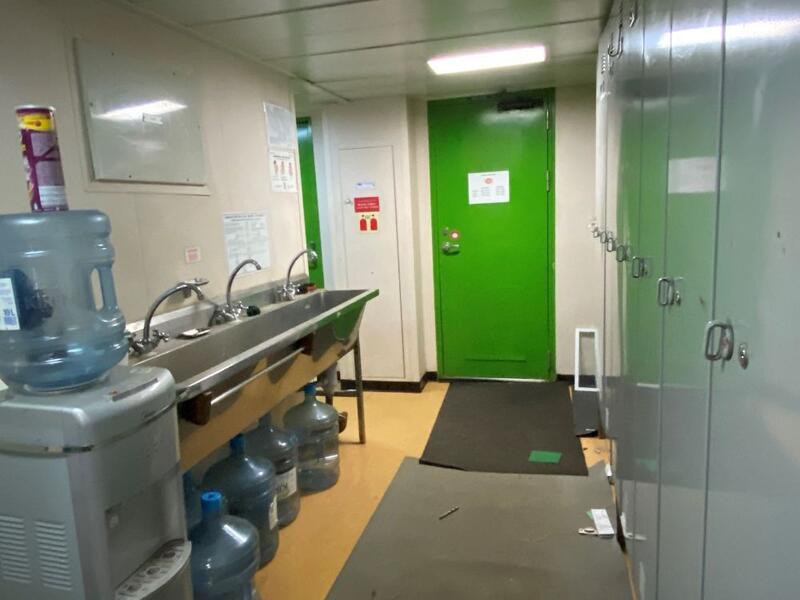

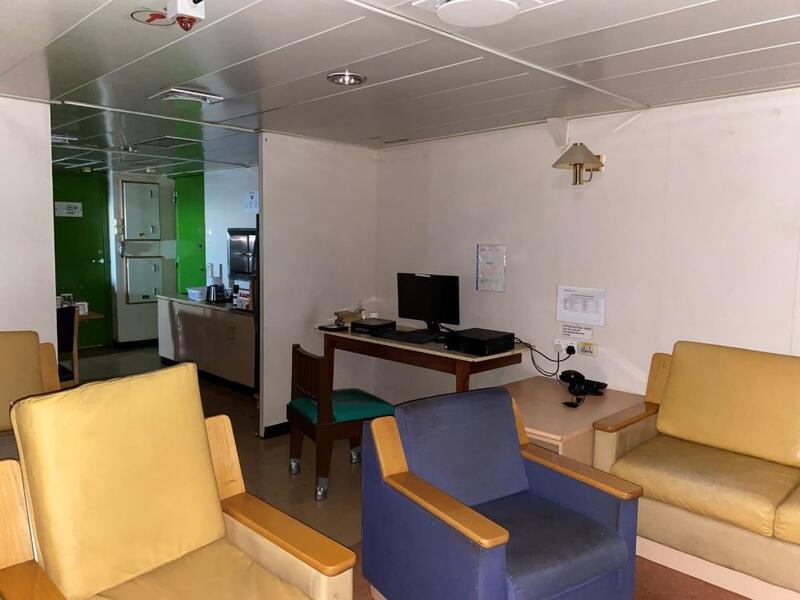

Accommodation

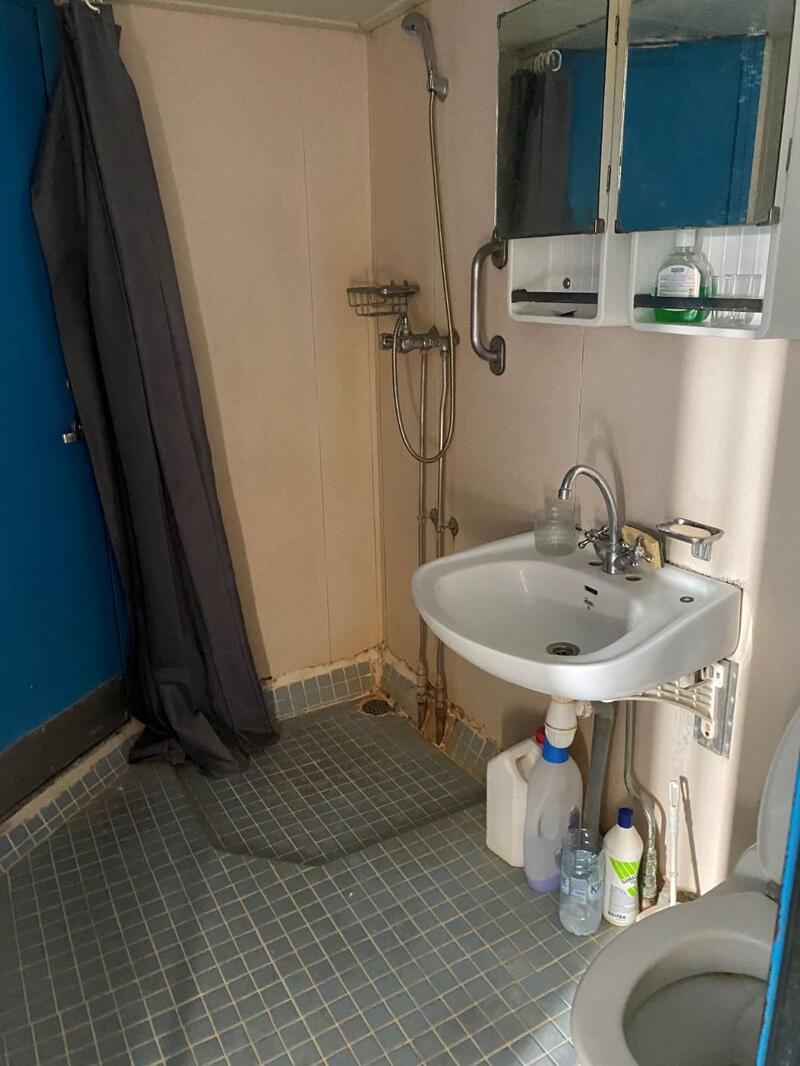

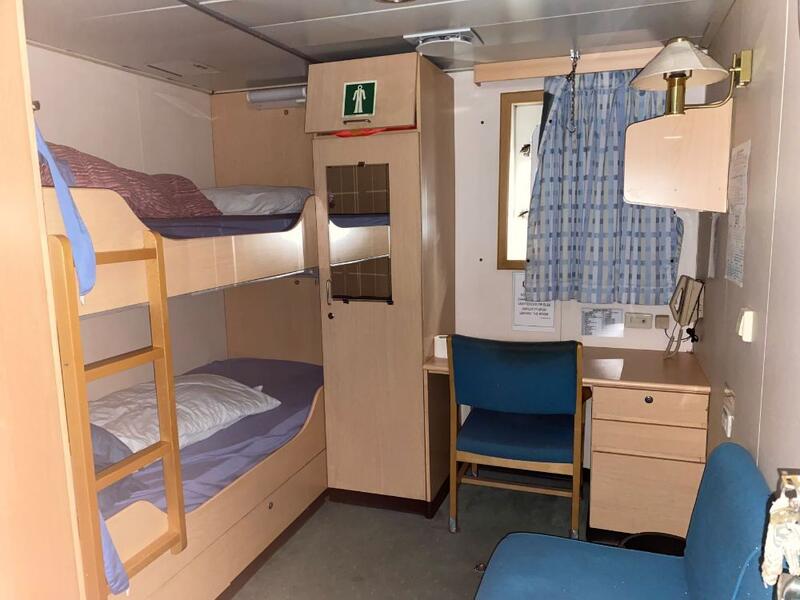

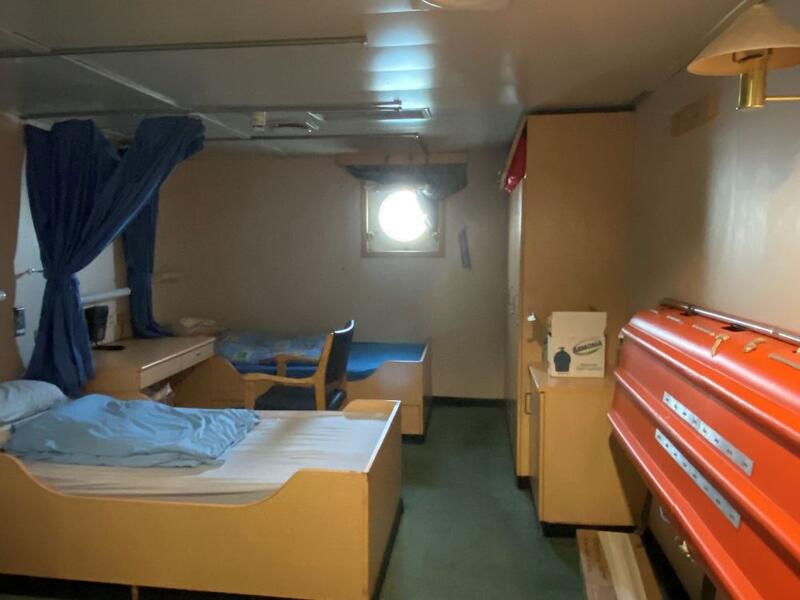

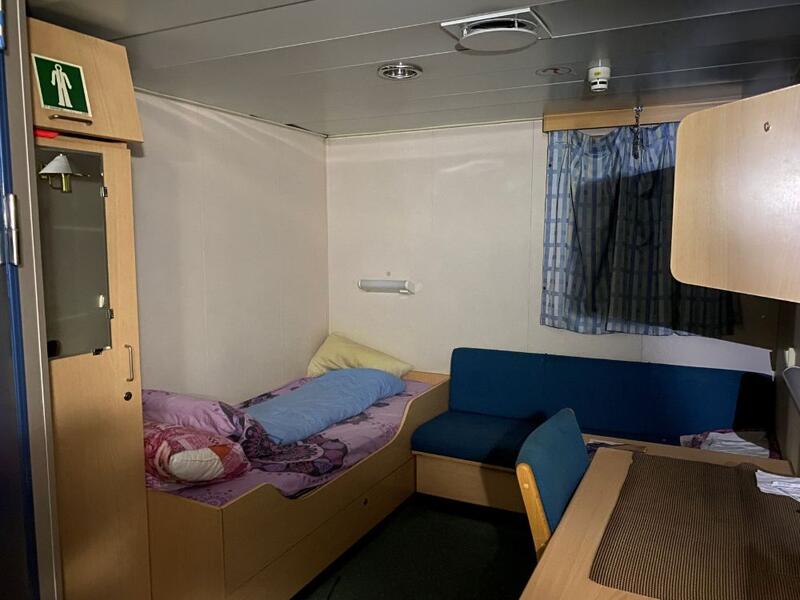

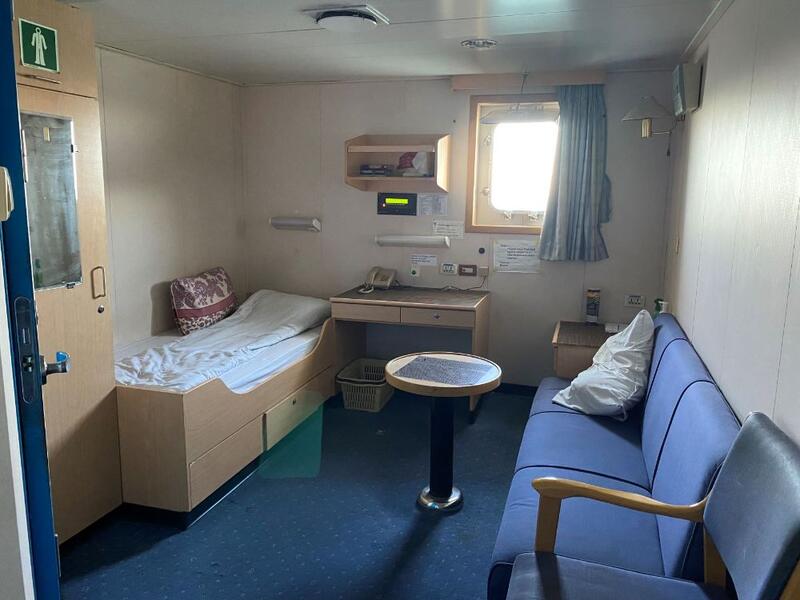

Person Capacity Total 29 9 x 1man cabin 10 x 2man cabins (Including hospital)

Construction

Built (year and place) 2002,KOREA, SOUTH
Hull material Steel
Length Overall (m) 64.30 m
Breadth (m) 15.00 m
Draft (m) 5.70 m
GT (tons) 1864 tons
DWT (tons) 2117 tons

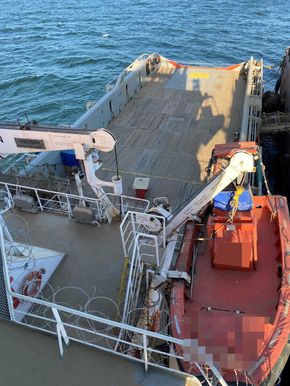

Deck Capacities
Deck Load Capacity 930 t
Deck Strength 5 t/m² (General Deck) 10 t/m² (After A/H Deck)
Free Deck Area 414 m²
Length x Width 34.5 x 12 m

Equipment

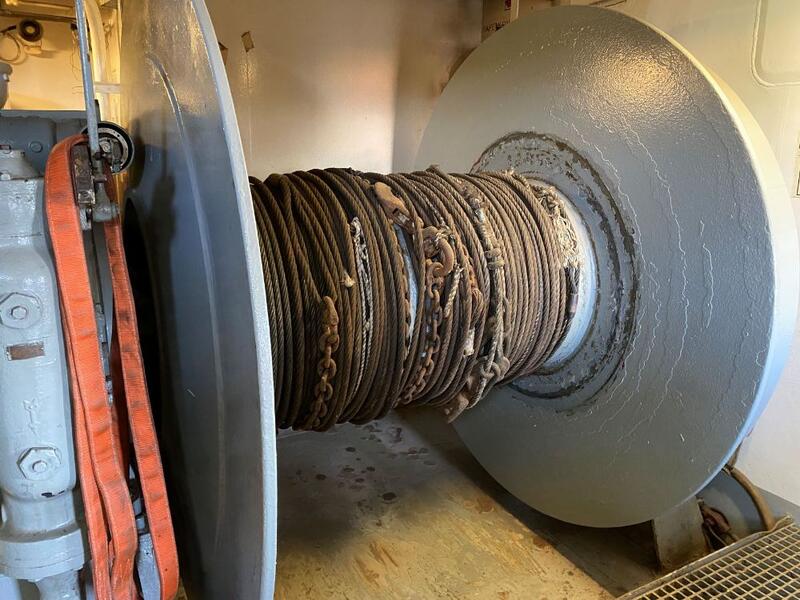

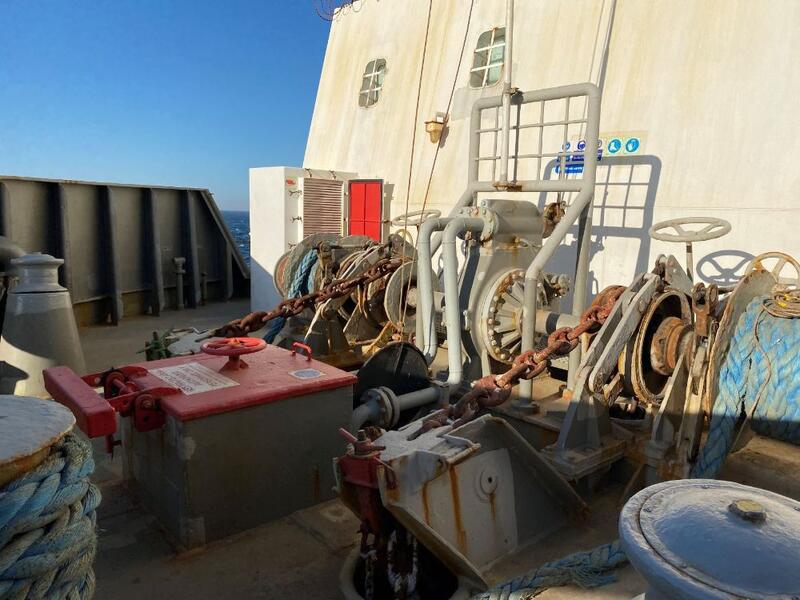

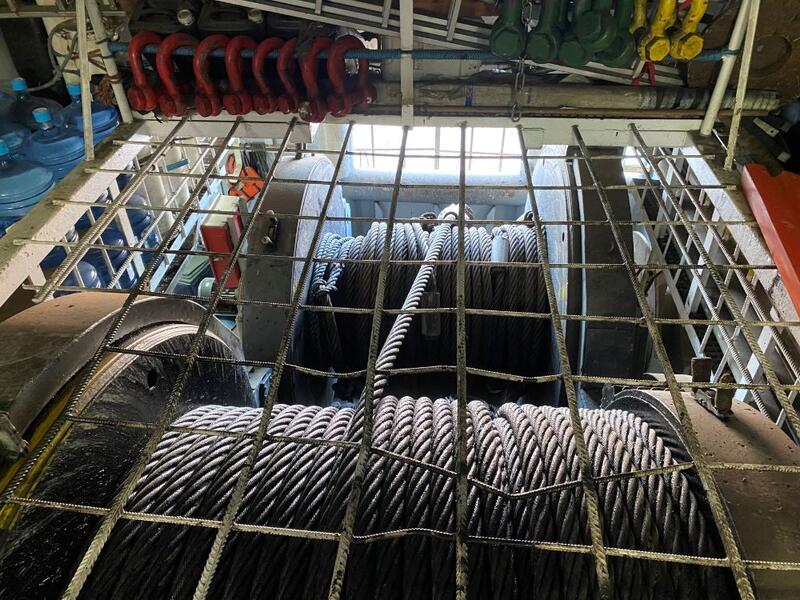

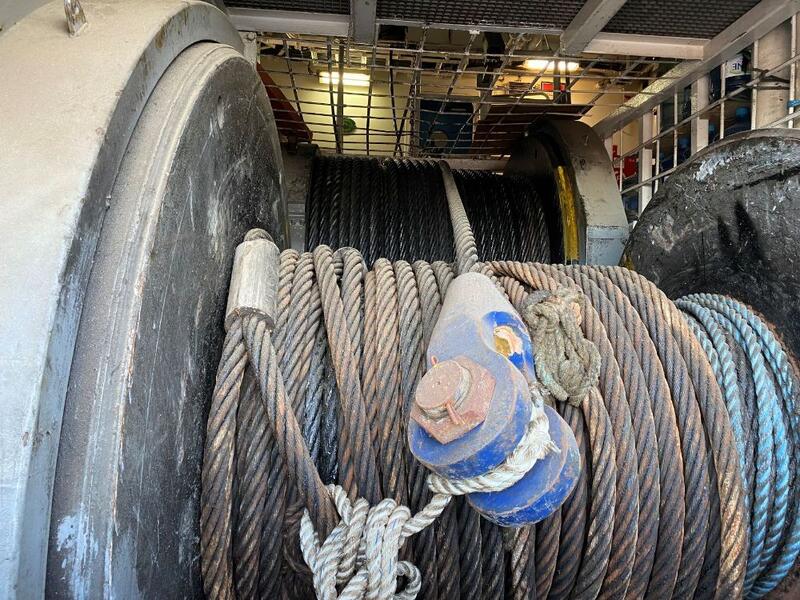

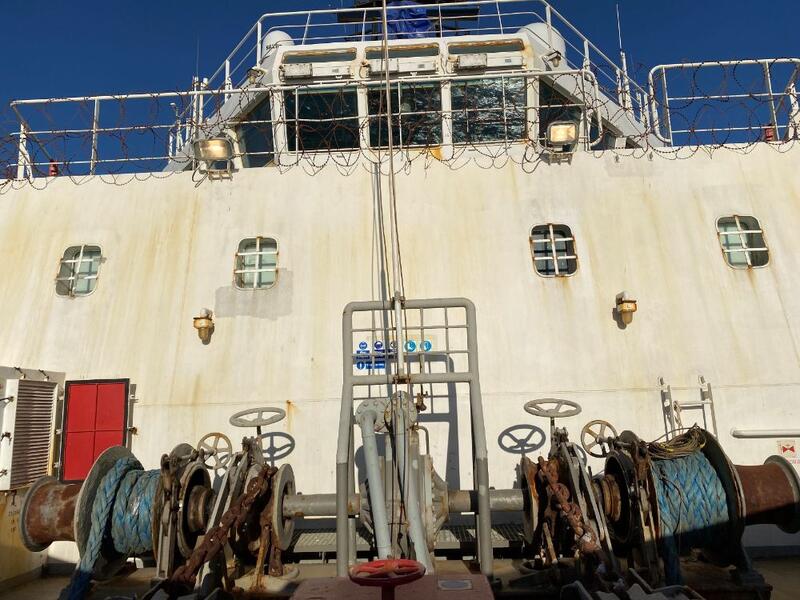

Anchor Handling Winch 1 x AH winch 150 t 1st layer @ 0-5.7 m/min Wire capacity 1400 m of 56 mm dia.
Towing Pins 2 x Karmoy 160 t SWL
Shark Jaws 1 x Karmoy 300 t MBL

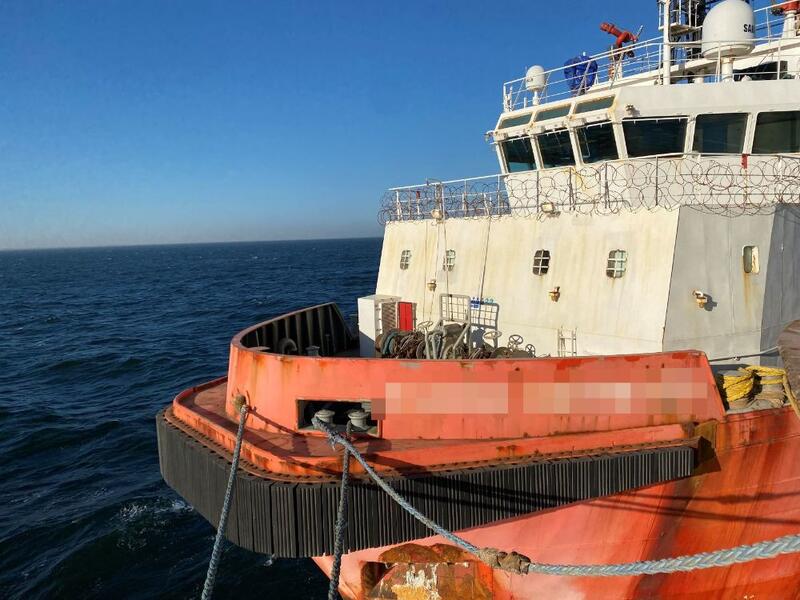

Stern Roller RRM 2.0 m x 4.0 m @ 250 t SWL
Capstans 2 x RRM 10 t @ 0-20 m/min, Light line 0-22 m/min
Tugger Winches 2 x RRM 6 t @ 0-17 m/min Storage capacity 250 m of 18 mm dia. Wire Light line 0-55 m/min
Provision Crane Electric Hydraulic, Fixed Boom Capacity 2 t @ 10 m
Chain Gypsies 1 x 76 mm mounted on work drum

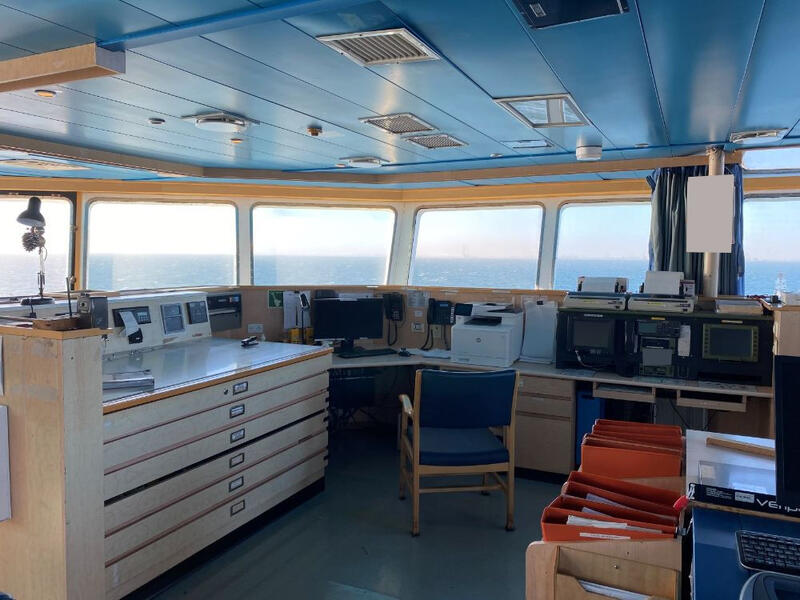

Navigation Equipment

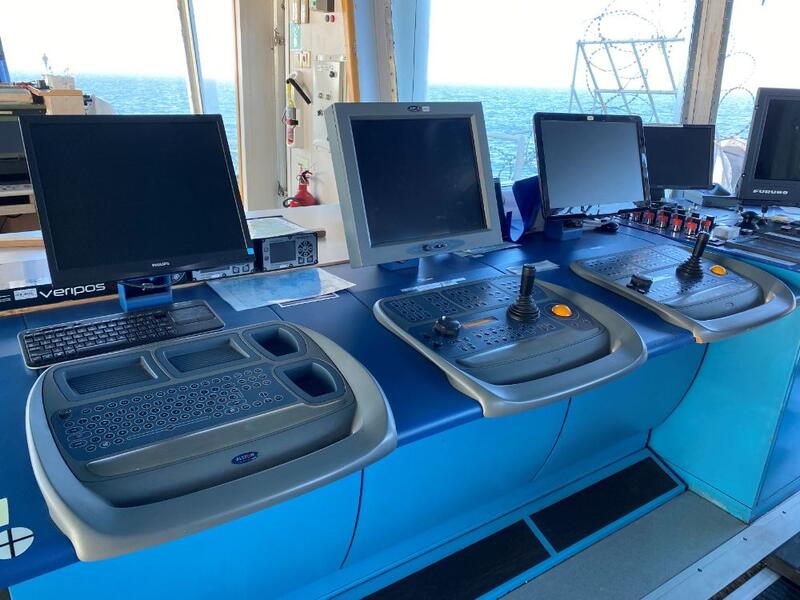

Dynamic Positioning System
Type Alstom Dual Redundant ADP 21 DP System
Reference Systems 2 x Veripos LiD5 DGNSS 1 x Cyscan 1 x Sonardyne
Motion Reference Units 2 x Gyro Compasses 2 x Ultrasonic Wind sensors 2 x VRU

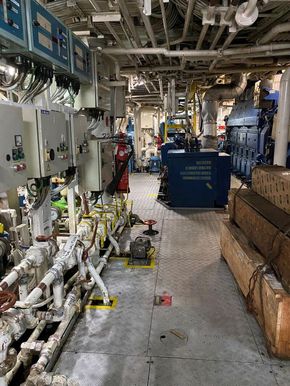

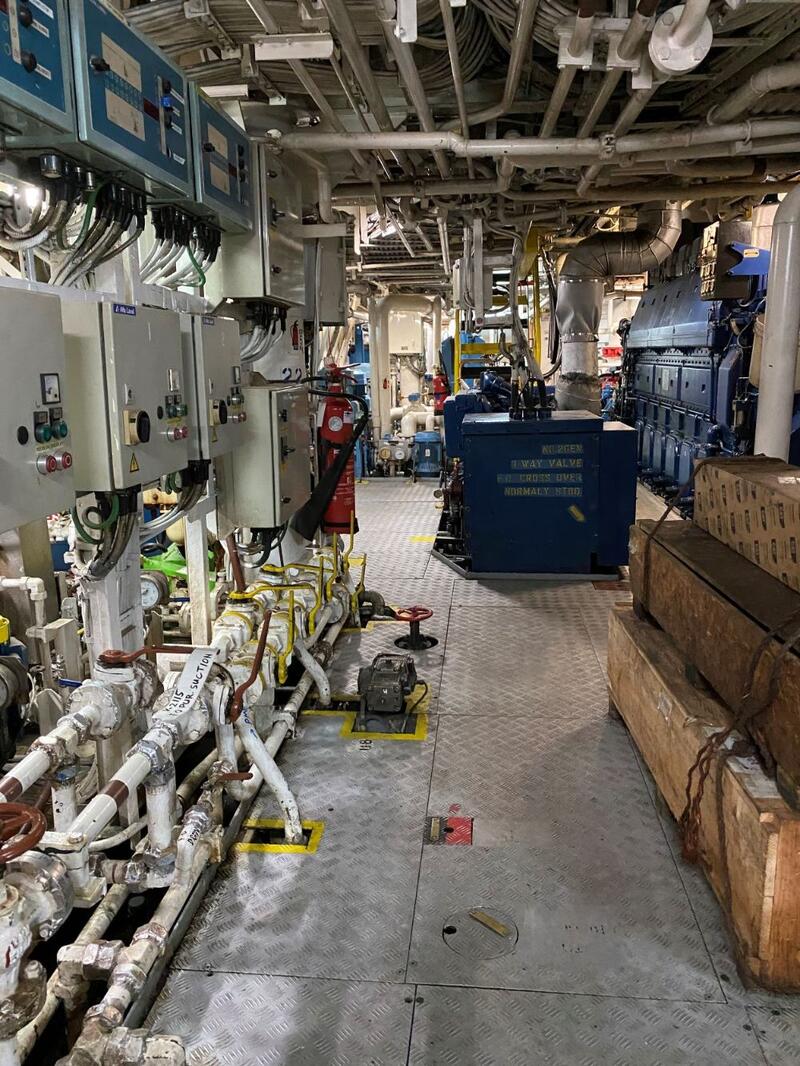

Engine(s)

Total power output (BHP) 7200 bhp

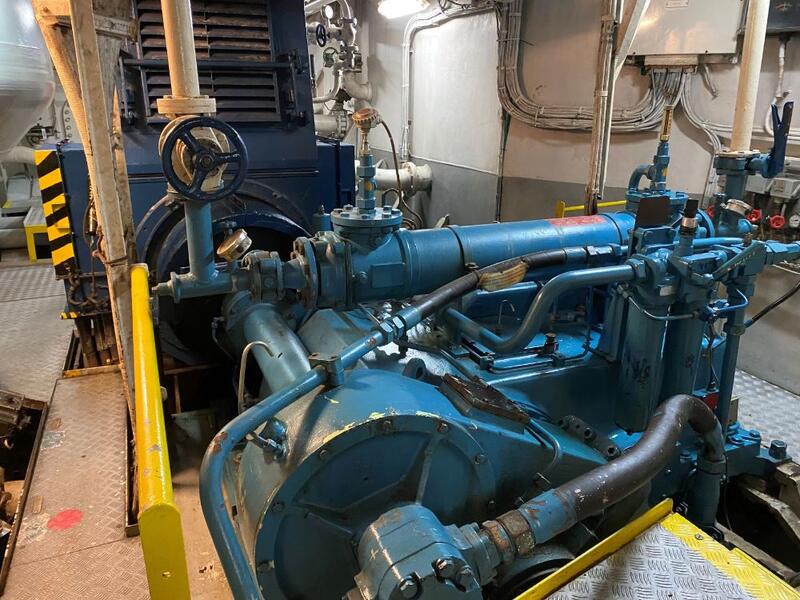

Main Engine(s) (make,type) 2 x Bergens diesel engines
Main Propulsion System 2 x CPP propellers in KORT nozzles

Propulsion / Bollard Pull

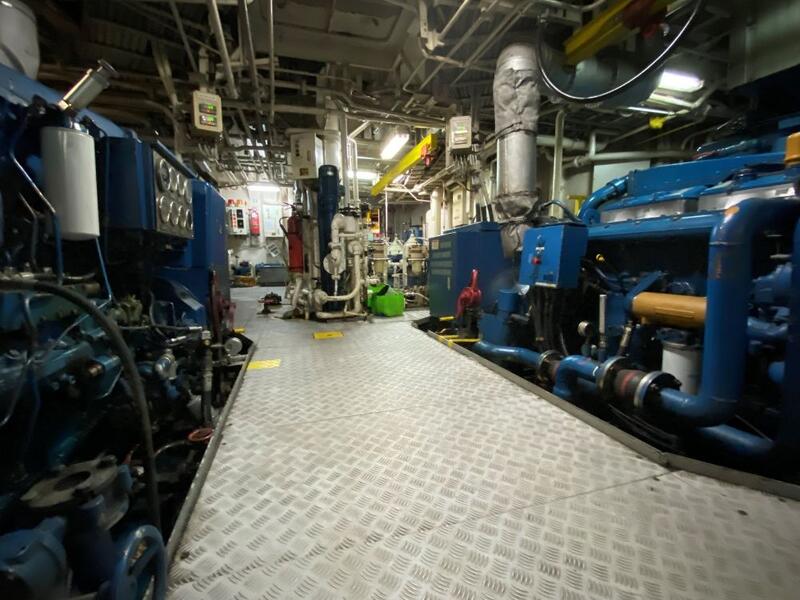

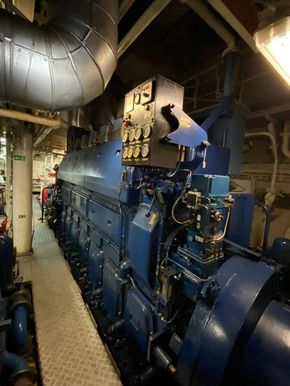

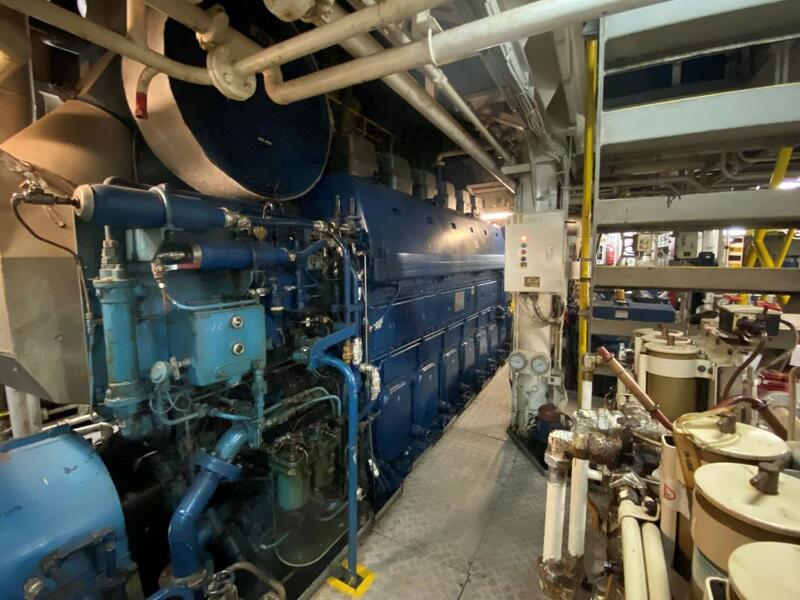

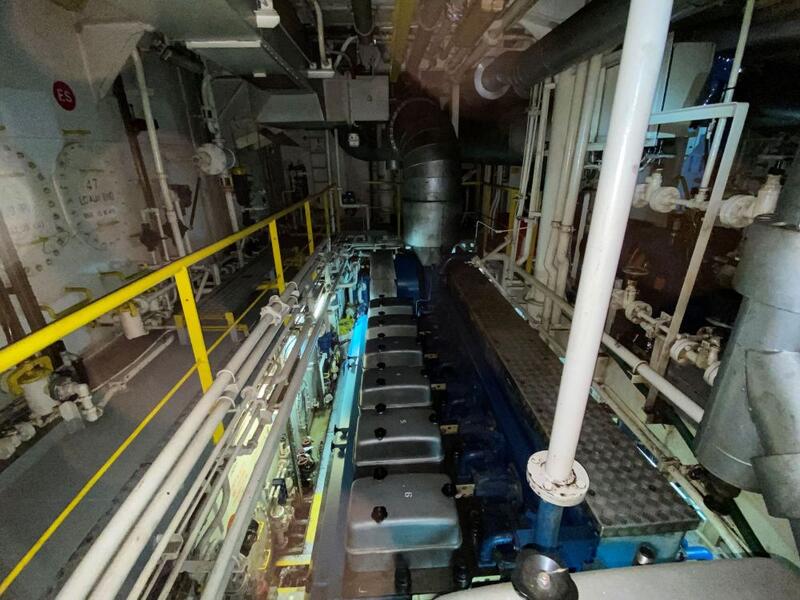

Main Engines 2 x Bergen diesel engines each 2685 kW = 5370 kW (7200 bHP),
2 x CPP propellers in KORT nozzles, with Hi-lift flap rudders

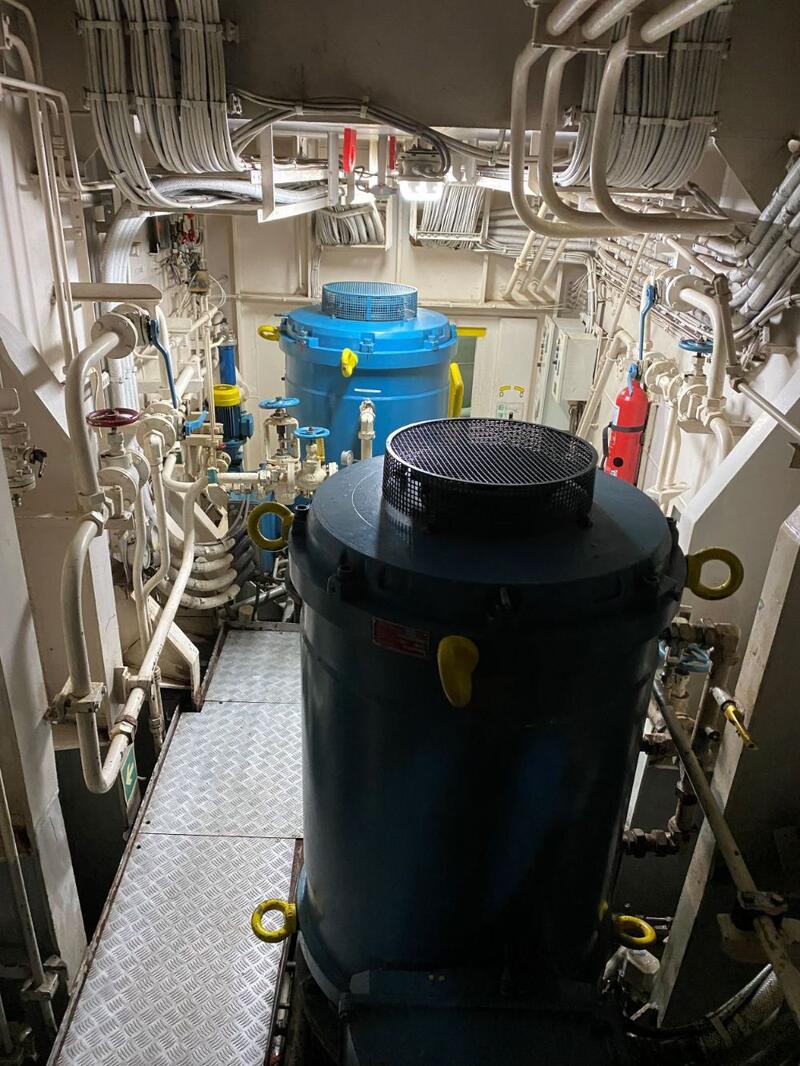

Thrusters 2 x Bow tunnel 590 kW / 791 bHP
2 x Stern tunnel 590 kW / 791 bHP
Bollard Pull 76 t @ 100 % MRC

Performance & Economy
Economical Speed Approx. 10.7 m³/Day @ 10kts
DP35% Approx. 11 m³/Day
Standby in Field Approx. 4 m³/Day (one engine running)
Standby in Port Approx. 1.2 m³/day
Note Performance & Economy figures are given at mean vessel draft of 5.0 m (1525 t deadweight) & Beaufort Scale 2

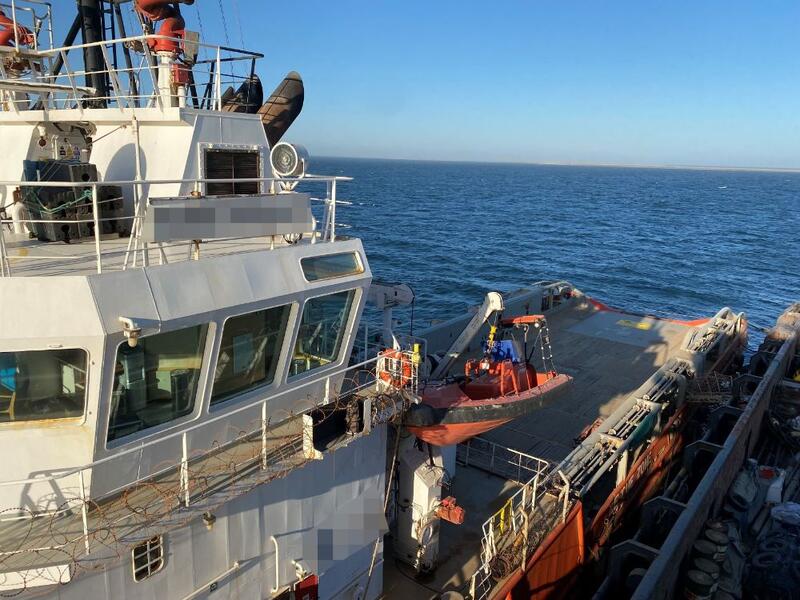

Safety Equipment

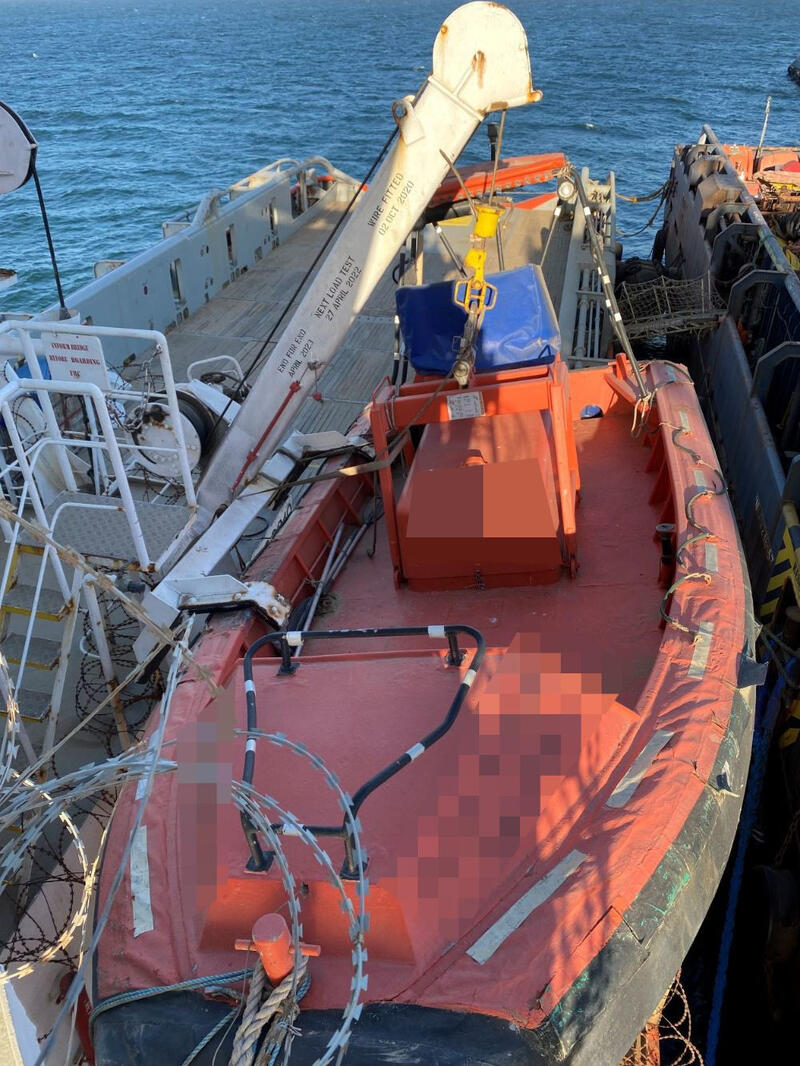

1. 1 x Maritime Partner MP660 Springer, 6 person, SOLAS approved FRB with inboard diesel waterjet

Certification

Flag SINGAPORE
Class Society and Notation DNV Supply Tug

Disclaimer

All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.

- DO NOT REPRODUCE, CIRCULATE OR ADVERTISE COMPLETELY OR PARTIALLY ANY OF OUR LISTINGS AND/OR CIRCULATIONS WITHOUT EXPRESSED WRITTEN AUTHORISATION -
