Description

Built: 2022 / China. Classification: BV I +HULL +MACH,+AUT-UMS, Tug/ Escort Tug. Berth: 12 pax. Speed: 12 kn. Bollard Pull: 70 tons Ahead / 65 tons Astern. Main Engine: 2 x Yanmar 6EY26W (IMO II). Power: 2610Bhp (1920kW) @750RPM. ASD Propellers: 2 x Schottel SRP 430 FP. External Fifi System. Bow Winch Set (with Escort/Towing /Anchor Windlass functions). Hydraulic Towing Winch Set.

Specifications

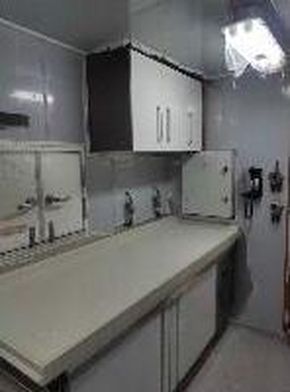

Accommodation

Construction

Length B.P.: 25.5 m
Depth MLD.: 5.35 m
Harbour/Escort Draft: 4.00 m
Offshore Draft: 4.40 m (max)
GRT: 495
Bollard Pull: 70 tons Ahead / 65 tons Astern

Equipment

Deck Equipment
Bow Winch Set (with Escort/Towing /Anchor Windlass functions)
Maker: J&J - Singapore
Quantity: 1 unit
Capacity: φ100mm×120 m (Nylon rope)(*)
Brake Holding: 200tons
Rated Pull: 30t@0~10m/min
Anchor Weight: 2 × 570kg
Diameter of Anchor Chain: φ20.5mm (Q2)
Rated Hauling Speed: 1.8t@0~10m/min

Hydraulic Towing Winch Set
Maker: J&J - Singapore
Quantity: 1 unit
Type: Single drum
Rope Capacity (Wire): Φ52mm × 700 m
Wire equipped on actual vessel: Φ52mm × 600 m
Brake Holding: 180tons
Rated Pull: 30t@0~10m/min

Navigation Equipment

Engine(s)

Main Engine: 2 x Yanmar 6EY26W (IMO II)
Power: 2610Bhp (1920kW) @750RPM
ASD Propellers: 2 x Schottel SRP 430 FP
Generating Set: 2 x Cummins CCFJ150CST (IMO II)
Power: 150kW @400V 50Hz 3Φ
Diesel Engine: L8.9GMII 272G
Speed: 12 kn

F.O. Tank: 200.00 m³
Daily F.O. Tank: 18.03 m³
F.W. Tank: 60.00 m³
Lube Oil Tank: 3.07 m³
Hydraulic Oil Tank: 2.05 m³
Foam Tank: 15.64 m³
Dispersant Tank: 12.41 m³

Auxiliary Equipment
Oily Water Separator: 1 × 0.25m³/h, (comply with MARPOL)
Air Compressor Unit: 2 × 20.4m³/h @3.0MPa
Main Air Cylinder: 2 × 300L@3.0Mpa
Sea/Fresh Water Pressure Tank: 1 × 80L/80L

Electronics

Radar: 1 × JRC JMA-5212-6
Echo Sounder: 1 × JRC JFE-380
Speed Log: 1 × YOKOGAWA EML-500
VHF Telephone: 1 × JRC JHS-770S
GPS: 1 × JRC JLR-8400
GMDSS: Area A1

Safety Equipment

External Fifi System
Maker: FFS (BV FI-FI 1) 2 × FFS1200SB 1200 m³/h Sea
Firefighting Pump: 1 × 2760m³/hr@120mLC

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
